Lambda, ELK and CloudTrail logs

1 Introduction

1.1 Why use ELK with CloudTrail?

AWS CloudTrail is a service that records API calls made on your account and saves log files in a Amazon S3 bucket. In theory, you can track user activities and API usage with this AWS feature. However, when you actually need to read and search the Cloudtrail logs, you will find out It is not an easy task.

Following are the difficulties

• The cloud trail file are gzip file stored on the S3 bucket, to view them, you have to download the file and unzip it.
• The log data are json data, it is not an easy readable data format for human.
• There are tons of logs file. Cloudtrail logs everything, and you might be facing thousands and thousands of log files to analysis.

In summary, we need a tool to work with CloudTrail logs. For me, ELK stack is free and easy to setup. So I decide to feed my Cloudtrail log files into a ELK stack.

1.2 My Journey

When I start looking for solution, I googled around and found the following two solutions sound promising:

• Integrate CouldTrail with Logstash
• Cloudtrail -> S3 -> Lambda -> Elasticsearch Service

First I tried the logstash integration method, but I could not get the needed plug-in installed successfully, so I gave up.

Then, I follow the 2nd post to use AWS Lamba function to pull the CloudTrail logs from S3 bucket and save it in the ELK stack. Although the original post is very detail with the needed coding but I found out I still struggle with it and have to spend a good amount of time to get it work right. This prompt me to write this post and share how I get it works.

2 Prerequisites

You need to have the following to configure this setup:

• Basic level of AWS expertise to work with AWS console and setup services
• Basic knowledge of Lambda and Python scripting. If you are not, try to read the doc and watch some introduction video on youtube. Lambda and Python is not difficult to learn once you get some basic ideas.
• You had set up cloudtrail and save the logs to a S3 bucket
• You had set up an ELK stack. See my other post for instruction

3 Step by step instructions

3.1 Enable Elasticsearch remote access

By default, the Elasticsearch software on your ELK setup only listen to localhost, you need to change it.

Edit /etc/elasticsearch/elasticsearch.yml and modify the network.host line like the following:

. . . network.host: 0.0.0.0 . . .

Restart elasticsearch

$ sudo service elasticsearch restart

3.2 Modify the AWS Security Group for the ELK

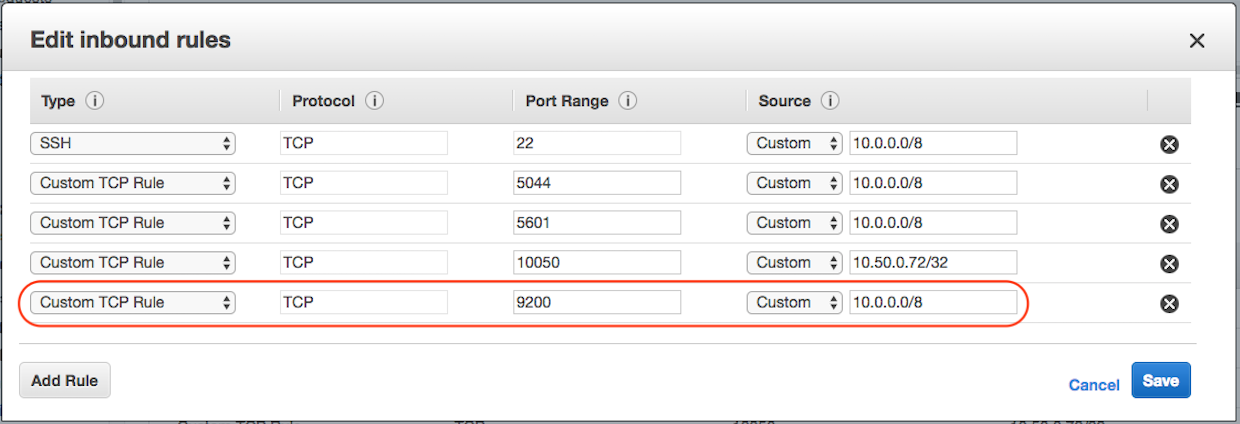

For the security used for your ELK server and open the port 9200 for inbound traffic.

You don’t have to worry about the security at this moment, you can modify it to only connect to the Lambda function's security group later.

Now, login to remote Linux box and run the following to make sure you can access  Elasticsearch remotely.

$ curl -X POST 'http://10.254.10.230:9200/testing/helloworld/1' -d '{ "message": "Hello World!" }' $curl -X GET 'http://10.254.10.230:9200/testing/helloworld/1' {"_index":"testing","_type":"helloworld","_id":"1","_version":1,"found":true,"_source":{ "message": "Hello World!" }}

3.3 Create IAM role for Lambda function

You need to create an IAM role for the Lambda function with two policies.

1. Sign in to the IAM console at https://console.aws.amazon.com/iam/.
2. Follow the steps in Creating a Role to Delegate Permissions to an AWS Service in the IAM User Guide to create an IAM role (execution role). As you follow the steps to create a role, note the following:
• In Role Name, use a name that is unique within your AWS account (for example, lambda-cloudtrail-role).
• In Select Role Type, choose AWS Service Roles, and then choose AWS Lambda. This grants the AWS Lambda service permissions to assume the role.
• In Attach Policy, choose AWSLambdaExecute and AWSLambdaVPCAccessExecuteRole.

The AWSLambdaExecute policy allow the Lambda function to log message and access S3 buckets.

{  "Version": "2012-10-17",  "Statement": [    {      "Effect": "Allow",      "Action": [        "logs:*"      ],      "Resource": "arn:aws:logs:*:*:*"    },    {      "Effect": "Allow",      "Action": [        "s3:GetObject",        "s3:PutObject"      ],      "Resource": "arn:aws:s3:::*"    }  ] }

The AWSLambdaVPCAccessExecuteRole policy allow us to place the Lambda function in a VPC and access to EC2 instance.

{  "Version": "2012-10-17",  "Statement": [    {      "Effect": "Allow",      "Action": [        "logs:CreateLogGroup",        "logs:CreateLogStream",        "logs:PutLogEvents",        "ec2:CreateNetworkInterface",        "ec2:DescribeNetworkInterfaces",        "ec2:DeleteNetworkInterface"      ],      "Resource": "*"    }  ]}

3.4 Download source code

You can download the code shared by Fernando Battistella from https://github.com/argais/cloudtrail_aws_es

If you install git on your desktop, you can download it with

$ git clone https://github.com/argais/cloudtrail_aws_es.git

3.5 Create a template on ElasticSearch for CloudTrail log data

• Assume you had downloaded all files from  https://github.com/argais/cloudtrail_aws_es
• Copy the elastic_search_cloudtrail_template.json on your ELK host
• Edit elastic_search_cloudtrail_template.json and remove the first line starting “Put /_temp….”

• Now the file should like the following:

{  "template" : "logstash-*",  "settings" : {    "index.refresh_interval" : "5s"  },  "mappings" : {    "_default_" : {      "_all" : {"enabled" : true, "omit_norms" : true},      "dynamic_templates" : [ {        "message_field" : {          "match" : "message",          "match_mapping_type" : "string",          "mapping" : {            "type" : "string", "index" : "analyzed", "omit_norms" : true,            "fielddata" : { "format" : "enabled" }          }        }      }, {        "string_fields" : {          "match" : "*",          "match_mapping_type" : "string",          "mapping" : {            "type" : "string", "index" : "analyzed", "omit_norms" : true,            "fielddata" : { "format" : "enabled" },            "fields" : {              "raw" : {"type": "string", "index" : "not_analyzed", "doc_values" : true, "ignore_above" : 256}            }          }        }      }, {        "float_fields" : {          "match" : "*",          "match_mapping_type" : "float",          "mapping" : { "type" : "float", "doc_values" : true }        }      }, {        "double_fields" : {          "match" : "*",          "match_mapping_type" : "double",          "mapping" : { "type" : "double", "doc_values" : true }        }      }, {        "byte_fields" : {          "match" : "*",          "match_mapping_type" : "byte",          "mapping" : { "type" : "byte", "doc_values" : true }        }      }, {        "short_fields" : {          "match" : "*",          "match_mapping_type" : "short",          "mapping" : { "type" : "short", "doc_values" : true }        }      }, {        "integer_fields" : {          "match" : "*",          "match_mapping_type" : "integer",          "mapping" : { "type" : "integer", "doc_values" : true }        }      }, {        "long_fields" : {          "match" : "*",          "match_mapping_type" : "long",          "mapping" : { "type" : "long", "doc_values" : true }        }      }, {        "date_fields" : {          "match" : "*",          "match_mapping_type" : "date",          "mapping" : { "type" : "date", "doc_values" : true }        }      }, {        "geo_point_fields" : {          "match" : "*",          "match_mapping_type" : "geo_point",          "mapping" : { "type" : "geo_point", "doc_values" : true }        }      } ],      "properties" : {        "@timestamp": { "type": "date", "doc_values" : true },        "@version": { "type": "string", "index": "not_analyzed", "doc_values" : true },        "geoip"  : {          "type" : "object",          "dynamic": true,          "properties" : {            "ip": { "type": "ip", "doc_values" : true },            "location" : { "type" : "geo_point", "doc_values" : true },            "latitude" : { "type" : "float", "doc_values" : true },            "longitude" : { "type" : "float", "doc_values" : true }          }        }      }    }  } }

• On the ELK host and run the following command:

$ curl -XPUT 'http://localhost:9200/_template/logstash' -d@elastic_search_cloudtrail_template.json

• You should get response like the following:

{"acknowledged":true}

3.6 Create the python script for the Lambda function

I used the original script s3_lambda_es.py as the template and modified it to work with my ELK server.

Following is my code, please make sure you modify the host and port value in the code to fit your needs.

from __future__ import print_function import json import boto3 import urllib import gzip import datetime import hashlib import hmac import re import requests ############################################################################ ## AWS lambda does not comes with the requests library ## When you upload this function, you have to include the request module ## ## Instructions to build the zip file on linux ## $ cd <directory with your lambda> ## $ pip install requests -t . ## $ vi lambda_function.py ##    .. add your function code here ## $ zip ../lambda_function.zip * ############################################################################# elk_host = "x.x.x.x" es_port ="9200" print('Lambda function starting') s3 = boto3.client('s3') def lambda_handler(event, context):    #print("Received event: " + json.dumps(event, indent=2))    # Get the object from the event and show its content type    bucket = event['Records'][0]['s3']['bucket']['name']    key = urllib.unquote_plus(event['Records'][0]['s3']['object']['key'].encode('utf8'))        # make sure it is a cloudtrail log file    if ( re.match('.*_CloudTrail_.*', key ) and re.match('.*.gz', key ) ):        print("bucket=" + bucket + " key=" + key)    else:        return            # download the cloudtrail log file to /tmp    tempfile = '/tmp/temp.gz'    s3.download_file(bucket, key, tempfile)        # unzip cloudtrail log and put it into a variable    log_content = gzip.open( tempfile, "r")        # use json library to load the cloudtrail records into    events = json.loads( log_content.readlines()[0])["Records"]        for msg in events:        # skip useless events for not to flood elasticsearch db        if ( re.match('Describe.*', msg["eventName"] ) ):            continue                # adds @timestamp field = time of the event        msg["@timestamp"] = msg["eventTime"]                # removes .aws.amazon.com from eventsources        msg["eventSource"] = msg["eventSource"].split(".")[0]                data = json.dumps(msg)        headers = { "Content-Type": "application/json"}        # defines correct index name based on eventTime, so we have an index for each day on ES        event_date = msg["eventTime"].split("T")[0].replace("-", ".")        #print (msg["eventSource"] + " " + msg["eventName"] + " " + event_date)                # url endpoint for our ES cluster        url = 'http://' + elk_host + ':' + es_port + '/logstash-' + event_date + '/cloudtrail/'        print ("url :", url)        print ("data: ", data)        # sends the json to elasticsearch        req = requests.post(url, data=data , headers=headers)        print ("status code: ", req.status_code )        print ("text", req.text)                # retry, normally it should not happen        retry_counter = 1        while req.status_code != 201 and retry_counter < 4:            print ("retry", retry_counter, "of 3 - failed sending data to elasticsearch:", req.status_code)            # send the data to ES again            req = requests.post(url, data=data, headers=headers)            # if it worked this time, nice! \o/            if req.status_code == 201:                print ("data successfully sent!")                print ("status code: ", req.status_code)                print ("text", req.text)                retry_counter += 1

3.7 Create a zip file

Since the Python script use the module “requests” and it does not included in AWS’s library, we need to pack it with a zip file along with the Python script for the Lambda function.

Create a work directory and download the requests module with pip

$ mkdir my_work_dir $ cd my_work_dir $ pip install requests -t .

Now you need to cut and paste the code in the previous section into a file called “lambda_function.py”

Now your directory should have the following:

$ ls lambda_function.py      requests        requests-2.13.0.dist-info

Zip this entire folder (Very important! The files must be on the root of the zip, not inside a folder)

$ zip -r ../lambda_function.zip *

3.8 Create a Security group for the Lambda function

• Open the Amazon EC2 console at https://console.aws.amazon.com/ec2/.
• In the navigation pane, choose Security Groups.
• Choose Create Security Group.
• Specify a name (like lambda-cloudtrail) and description for the security group.
• choose a VPC ID to create a security group for that VPC.
• Add an inbound rule allow all inbound traffics and click the “Create” button.

3.9 AWS Lambda function

3.9.1 Create the Lambda function

• Log in to the AWS Management Console and open the AWS Lambda console.
• If you are first time Lambda user, you have a screen like the following:

Click on “Get Start Now”

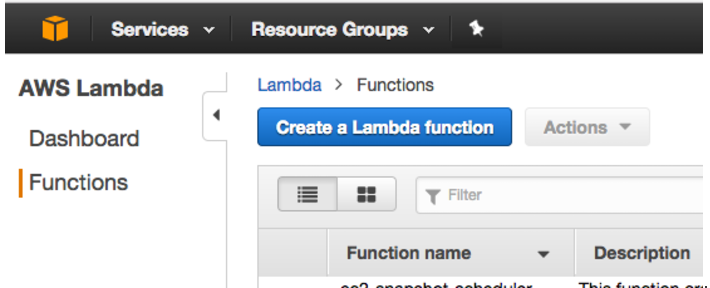

• If you already created a Lambda function, you will forward to Lambda dash board:

Click on “Create a Lambda function”

• On the Select blueprint page, select a “S3-get-object-python”

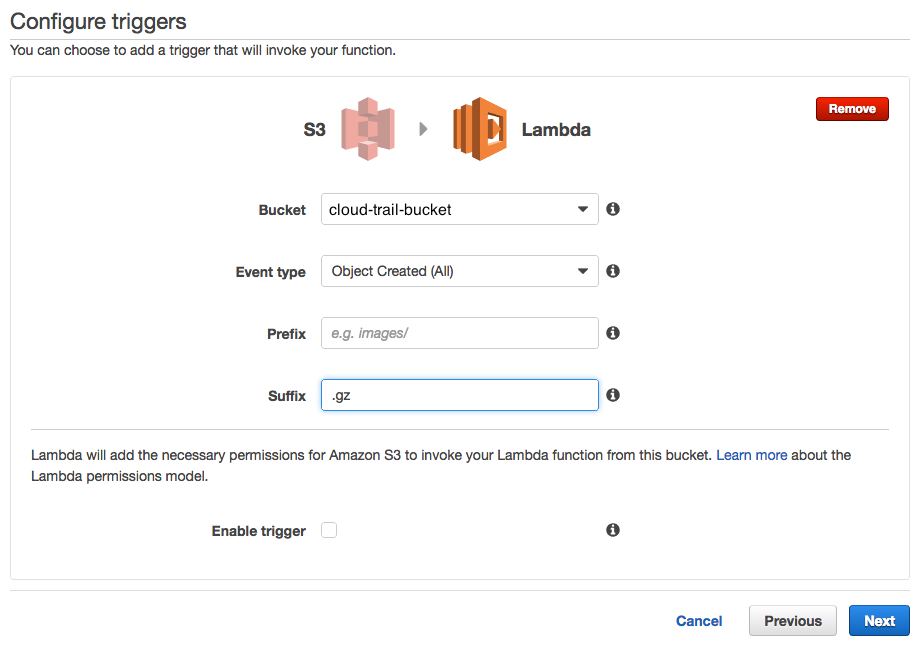

• Enter the following:
• Bucket -> the bucket name you store the CloudTrail log files
• Event type -> select “Object Created (All)”
• Prefix -> leave it blank
• Suffix -> enter “.gz”

Click next to continue

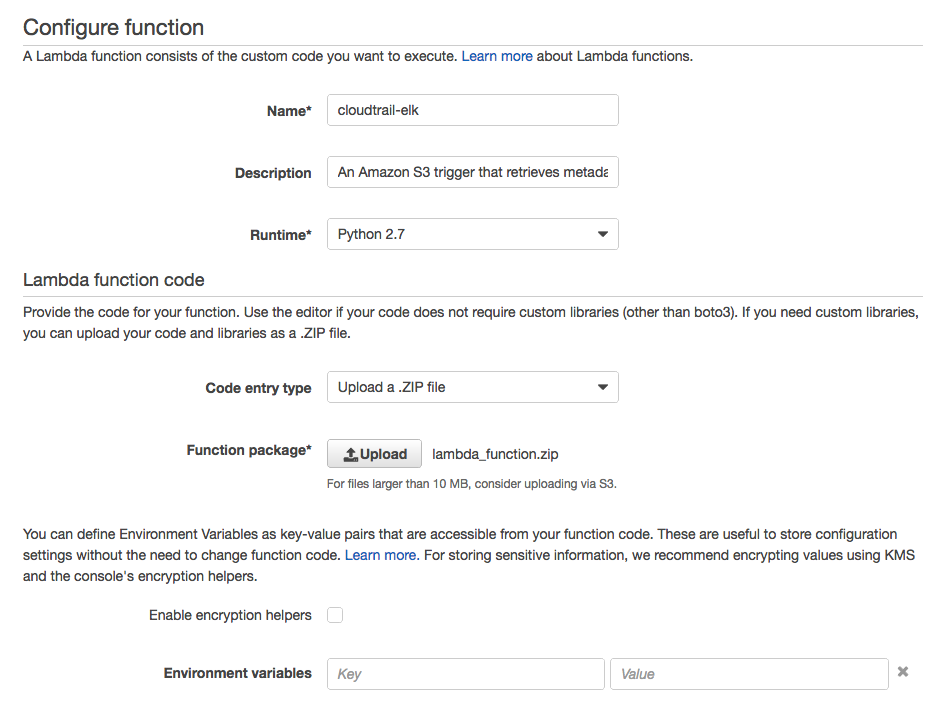

• Enter the following:
• Name: enter any name you want
• Description: enter description
• Runtime: select “Python 2.7”
• Code enter type: select “Upload a .ZIP file”
• Click on the “Upload button” and select the zip file we created in previous step.
• Environment variables -> leave it alone.

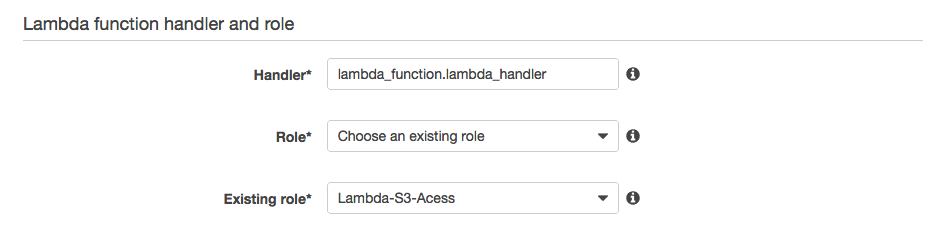

• Handler -> use the default value “lambda_function.lambda_handler
• Role -> select “Choose an existing role”
• Existing role -> select the role for Lambda function created in previous step.

• Click on the “Advanced settings” to expand the it
• Memory -> select 1024. (note, the script works with 128M but it runs very slow)
• Timeout -> use the default “3 second”.
• DLQ Resource -> leave it blank
• VPC -> select a VPC
• Subnets -> select two subnets (it has to be private subnets)
• Security group -> select the security group we created for Lambda function
• KMS -> leave it blank

Click Next

• On the review screen, click “Create function”

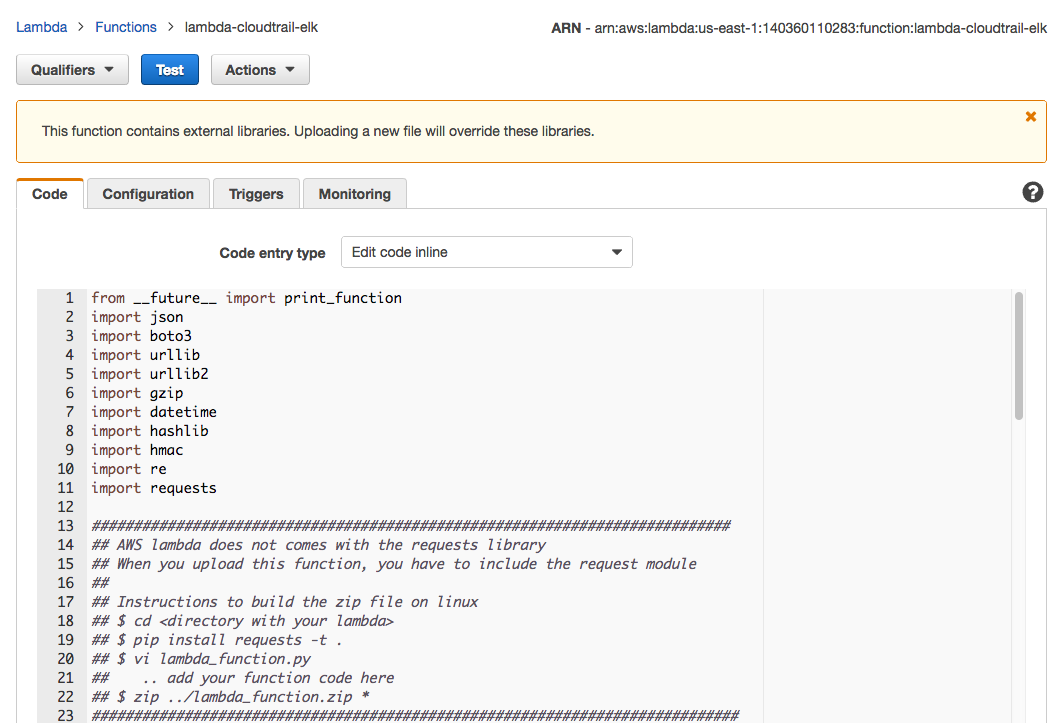

• Now your function is created

3.9.2 Test the Lambda function

• At this moment, you can test the function by selecting ”Configure
• test event”,How to do it is beyond the scope of the document. Check out this document on how to set up test Lambda with S3.

• From the “Input test event” screen
• Select “S3 Put” template
• On the key field, select one of your cloudtrail file name from your S3 bucket. For example:

mydir/AWSLogs/123456789012/CloudTrail/us-east-1/2017/03/13/123456789012_CloudTrail_us-east-1_20170313T0000Z_xxxxxyyyyyyzzzzz.json.gz

• On the arn and name field, enter the the bucket name used for the Cloudtrail logs
• Click “Save”

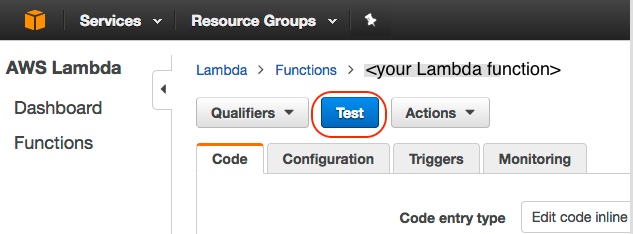

• Now, you have your test event setup, you could run the test by clicking on the “Test” button on the function

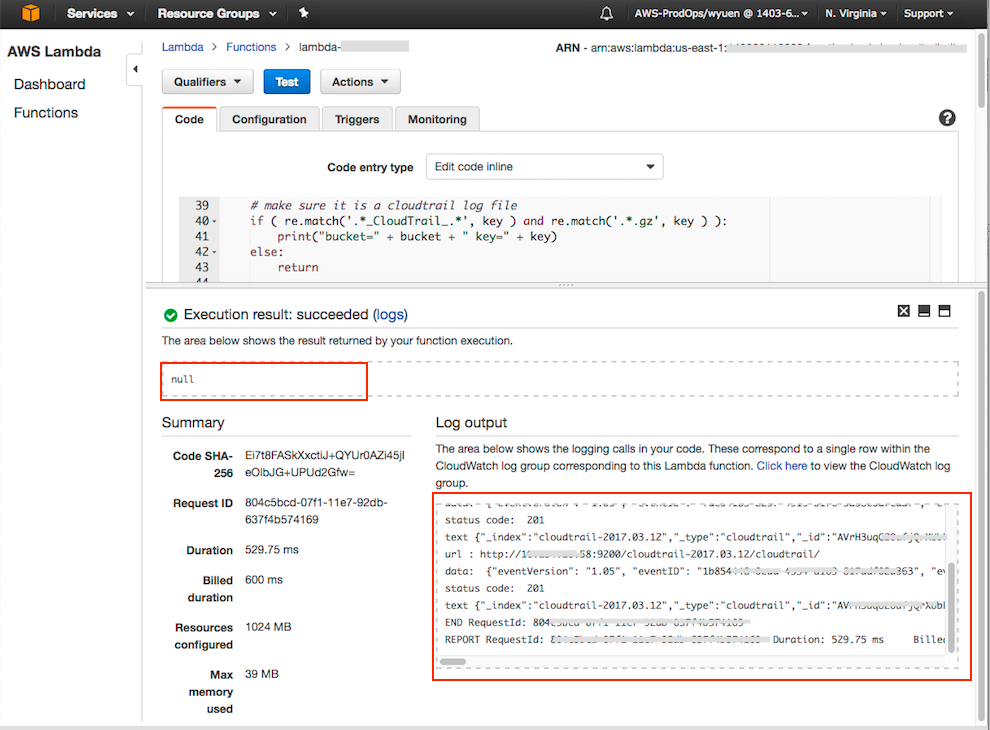

• You can view the output of the test on the bottom of the Lambda function screen

3.9.3 Enable the Trigger for production

• Once you confident the setup,

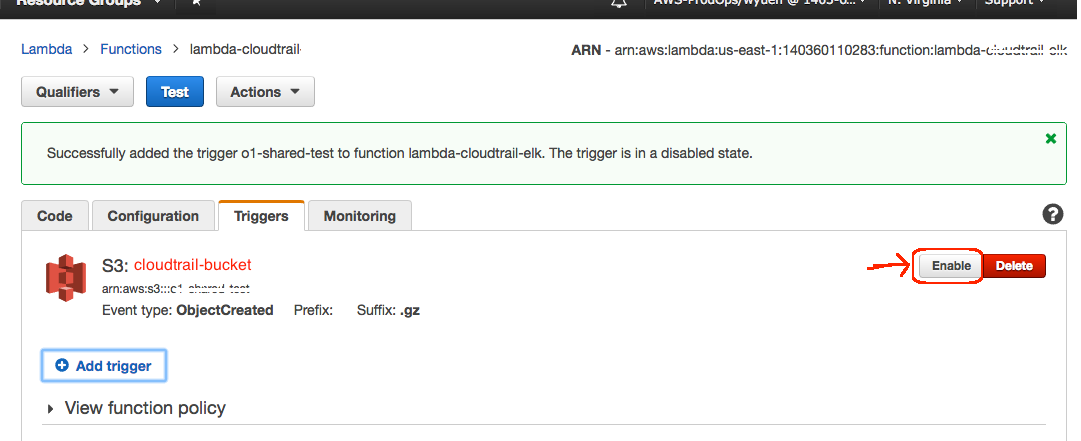

• Click on the “Triggers” tab
• Click on “Enable”

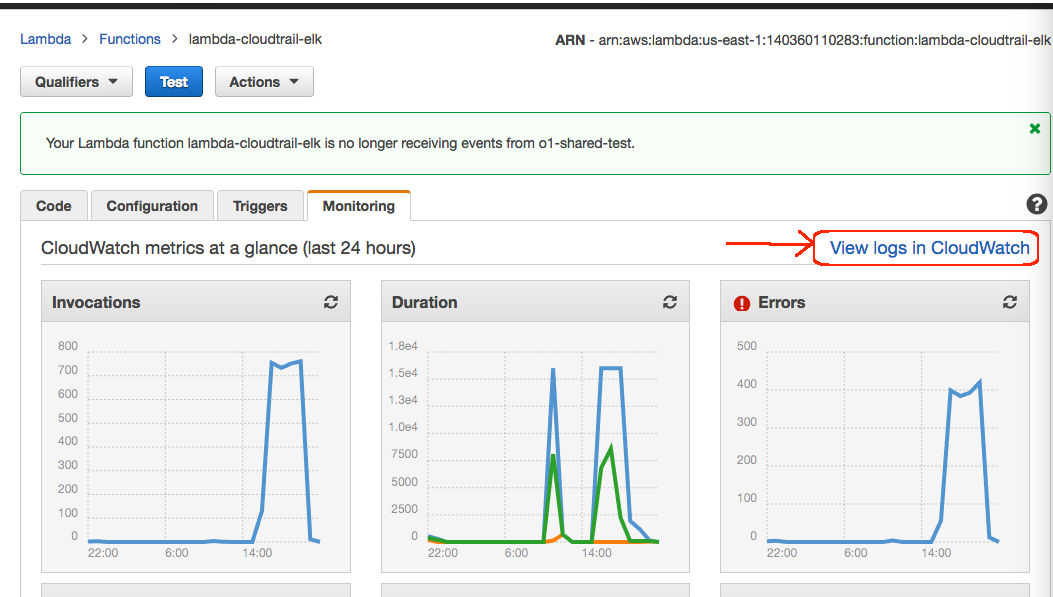

• Click on Monitor tab to check on the status, you can check the log by clicking on the “View logs in CloudWatch”. (Note: CloudTrail updates the S3 bucket every 5 minutes, you might want to get a cup of coffee now)

• Assuming no error is found, you can still using Kibana to view your CloudTrail messages

4 Use Kibana to view CloudTrail logs

• Login to Kibana
• Click on Discover

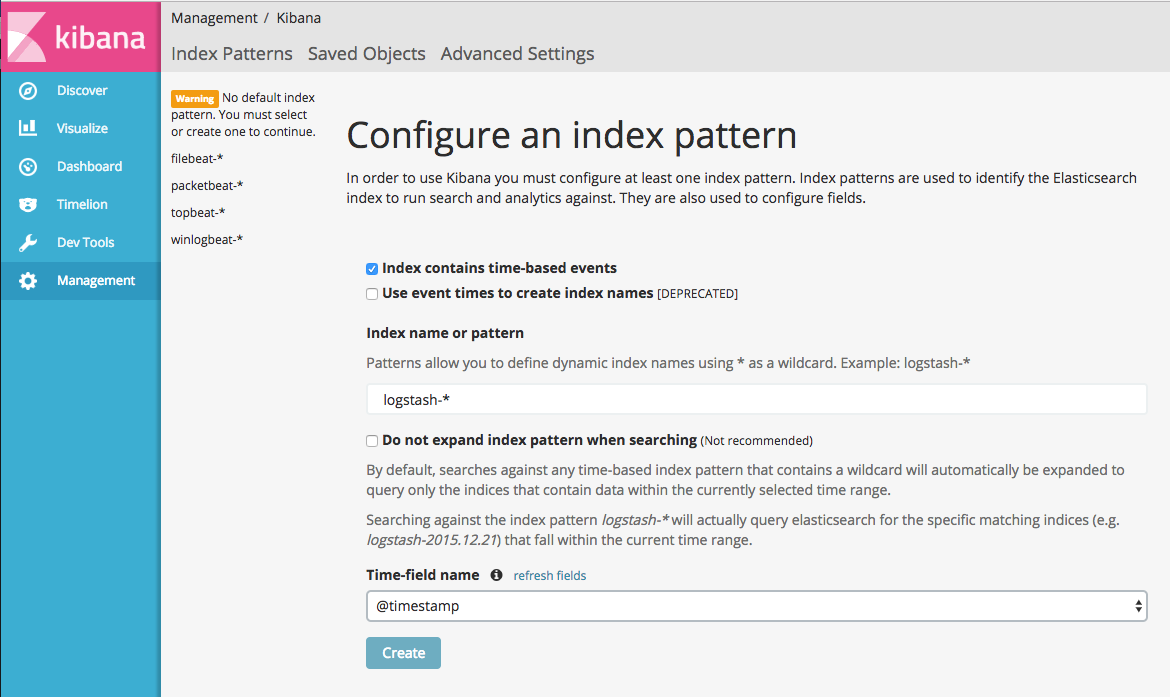

• On the Time-field name, select “@timestamp”

• Select a time period large enough to pull your log data (note: CloudTrail uses UTC timestamp, so it will be different from your local time zone).
• Click on Discovery and it should find your log

Note: You can get details of the cloudtrail records from here.
